Products
Compare the catalog range below, then open a configuration for its dimensions, engineering properties and available load data. Contact us to confirm options for your project.
Family images are AI-rendered illustrations. Individual model photographs, drawings and specifications remain catalog-sourced.
5 configurations
Engineering properties are per foot of panel width. A = cross-sectional area, I = moment of inertia, S = section modulus.

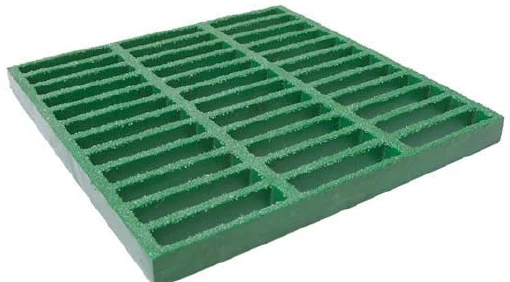

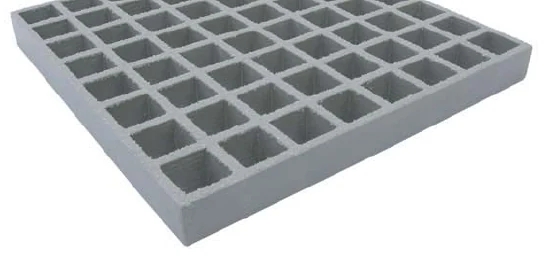

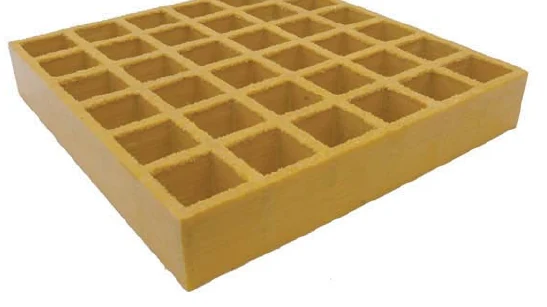

Interwoven molded panels for platforms and covers. Review cutout reinforcement and support details for each layout.
| Configuration | Panel size | Load bar width | Bar centers | Bars/ft | Weight | Open | A in² | I in⁴ | S in³ |
|---|---|---|---|---|---|---|---|---|---|

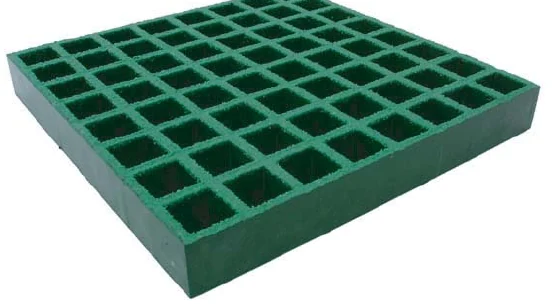

 1" x 1" x 4" Rectangular MeshRM 1"x1"x4" | 4' x 12' | 1/4" | 1" | 12 | 2.61 lbs/sf | 68% | 2.69in2 | 0.22in4 | 0.45in3 |

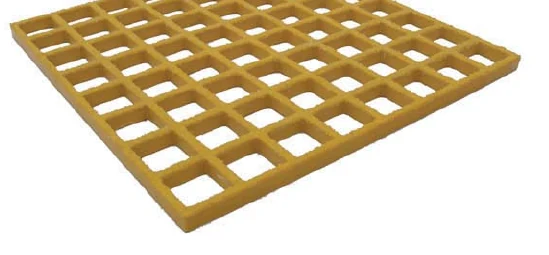

 1" x 1 1/2" Square MeshSM 1"x1-1/2" | 4' x 12' / 5' x 10' | 1/4" | 1 1/2" | 8 | 2.50 lbs/sf | 69% | 1.79in2 | 0.15in4 | 0.30in3 |
 1 1/4" x 1 1/2" Square MeshSM 1-1/4"x1-1/2" | 4' x 12' / 5' x 10' | 1/4" | 1 1/2" | 8 | 3.08 lbs/sf | 69% | 2.17in2 | 0.28in4 | 0.45in3 |
 1 1/2" x 1 1/2" Square MeshSM 1-1/2"x1-1/2" | 4' x 12' / 5' x 10' | 1/4" | 1 1/2" | 8 | 3.94 lbs/sf | 68% | 2.73in2 | 0.49in4 | 0.65in3 |
 2" x 2" Square MeshSM 2"x2" | 4' x 12' | 5/16" | 2" | 6 | 4.51 lbs/sf | 71% | 3.12in2 | 1.03in4 | 1.03in3 |
1 configuration
Engineering properties are per foot of panel width. A = cross-sectional area, I = moment of inertia, S = section modulus.
Closer mesh with 44% open area. A catalog ADA-designated option for walking-surface design.
| Configuration | Panel size | Load bar width | Bar centers | Bars/ft | Weight | Open | A in² | I in⁴ | S in³ |
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2" x 3/4" Mini MeshMM 1-1/2"x3/4" | 4' x 12' | 1/4" | 3/4" | 8 | 4.75 lbs/sf | 44% | 3.29in2 | 0.74in4 | 0.90in3 |
2 configurations
Engineering properties are per foot of panel width. A = cross-sectional area, I = moment of inertia, S = section modulus.
Broad T-bar top flanges for pedestrian deck layouts, with 33% or 50% open area.
| Configuration | Panel size | Load bar depth | Bar centers | Bars/ft | Weight | Open | A in² | I in⁴ | S in³ |
|---|---|---|---|---|---|---|---|---|---|
| T-Bar PT-2033PT-2033 | 5' x 20' | 2" | 1 1/2" | 8 | 4.44 lbs/sf | 33% | 4.34in2 | 2.11in4 | ST=2.64in3 SB=1.76in3 |
| T-Bar PT-2050PT-2050 | 5' x 20' | 2" | 2" | 6 | 3.43 lbs/sf | 50% | 3.23in2 | 1.58in4 | ST=1.98in3 SB=1.32in3 |
11 configurations
Engineering properties are per foot of panel width. A = cross-sectional area, I = moment of inertia, S = section modulus.
Continuous I-bars carry loads in one direction. Compare depth, open area and published deflection data.
| Configuration | Panel size | Load bar depth | Bar centers | Bars/ft | Weight | Open | A in² | I in⁴ | S in³ |
|---|---|---|---|---|---|---|---|---|---|
| I-Bar PI-1040PI-1040 | 5' x 20' | 1" | 1" | 12 | 3.47 lbs/sf | 40% | 3.66in2 | 0.46in4 | 0.93in3 |
| I-Bar PI-1050PI-1050 | 5' x 20' | 1" | 1.2" | 10 | 2.97 lbs/sf | 50% | 3.05in2 | 0.39in4 | 0.77in3 |
| I-Bar PI-1060PI-1060 | 5' x 20' | 1" | 1 1/2" | 8 | 2.47 lbs/sf | 60% | 2.44in2 | 0.31in4 | 0.62in3 |
| I-Bar PI-1540PI-1540 | 5' x 20' | 1 1/2" | 1" | 12 | 4.22 lbs/sf | 40% | 4.66in2 | 1.32in4 | 1.76in3 |
| I-Bar PI-1550PI-1550 | 5' x 20' | 1 1/2" | 1.2" | 10 | 3.60 lbs/sf | 50% | 3.89in2 | 1.11in4 | 1.47in3 |
| I-Bar PI-1560PI-1560 | 5' x 20' | 1 1/2" | 1 1/2" | 8 | 2.97 lbs/sf | 60% | 3.11in2 | 0.88in4 | 1.17in3 |
| I-Bar PI-1240PI-1240 | 5' x 20' | 1 1/4" | 1" | 12 | 3.77 lbs/sf | 40% | 4.13in2 | 0.83in4 | 1.33in3 |
| I-Bar PI-1250PI-1250 | 5' x 20' | 1 1/4" | 1.2" | 10 | 3.22 lbs/sf | 50% | 3.44in2 | 0.69in4 | 1.10in3 |
| I-Bar PI-1260PI-1260 | 5' x 20' | 1 1/4" | 1 1/2" | 8 | 2.67 lbs/sf | 60% | 2.75in2 | 0.55in4 | 0.88in3 |
| I-Bar PI-3050PI-3050 | 5' x 20' | 3" | 1.2" | 10 | 10.34 lbs/sf | 50% | 12.04in2 | 11.47in4 | 7.65in3 |
| I-Bar PI-3060PI-3060 | 5' x 20' | 3" | 1 1/2" | 8 | 8.40 lbs/sf | 60% | 9.63in2 | 9.18in4 | 6.12in3 |
4 configurations
Engineering properties are per foot of panel width. A = cross-sectional area, I = moment of inertia, S = section modulus.
Four catalog ADA-designated I-bar configurations. Confirm opening dimensions and the complete access design.
| Configuration | Panel size | Load bar depth | Bar centers | Bars/ft | Weight | Open | A in² | I in⁴ | S in³ |
|---|---|---|---|---|---|---|---|---|---|
| I-Bar PI-1040-ADAPI-1040-ADA | 5' x 20' | 1" | 0.52" | 23 | 4.08 lbs/sf | 40% | 4.44in2 | 0.49in4 | 0.98in3 |
| I-Bar PI-1050-ADAPI-1050-ADA | 5' x 20' | 1" | 0.63" | 19 | 3.50 lbs/sf | 50% | 3.67in2 | 0.40in4 | 0.80in3 |
| I-Bar PI-1060-ADAPI-1060-ADA | 5' x 20' | 1" | 0.78" | 15 | 2.92 lbs/sf | 60% | 2.90in2 | 0.32in4 | 0.64in3 |
| I-Bar PI-3040-ADAPI-3040-ADA | 5' x 20' | 3" | 1" | 12 | 12.28 lbs/sf | 40% | 14.44in2 | 13.76in4 | 9.18in3 |
2 configurations
Engineering properties are per foot of panel width. A = cross-sectional area, I = moment of inertia, S = section modulus.
Heavy-duty profiles with dedicated load data. Wheel and vehicle applications require project-specific engineering review.
| Configuration | Panel size | Load bar depth | Bar centers | Bars/ft | Weight | Open | A in² | I in⁴ | S in³ |
|---|---|---|---|---|---|---|---|---|---|
| HD Bar HDPI-2040HDPI-2040 | 5' x 20' | 2" | 1" | 12 | 11.81 lbs/sf | 40% | 14.4in2 | 4.80in4 | 4.80in3 |
| HD Bar HDPI-2050HDPI-2050 | 5' x 20' | 2" | 1.2" | 10 | 9.92 lbs/sf | 50% | 12.0in2 | 4.00in4 | 4.00in3 |
Products
Start with molded, pultruded or an ADA-designated configuration.
Compare deflection tables and confirm bearing direction and supports.
Review the chemical, concentration and maximum operating temperature.
Specify color, surface, cut sizes, stair treads and fasteners.
Send the quantity, drawings, delivery ZIP code and required date.
Walking surface
A concave molded bar top provides a textured walking surface without added grit. Review slip-resistance requirements for the actual conditions.
A bonded grit layer provides an additional surface option for walkways and stair treads. Specify the required finish and maintenance conditions.
A solid top plate closes the grating openings. Load capacity, drainage and any wheel traffic require separate review.
Stairs & covers

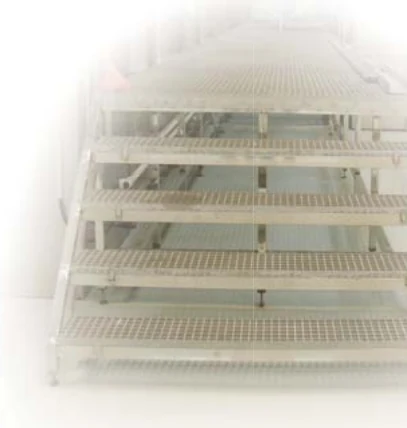

Standard tread panel is 1" x 6" rectangular mesh with the 6 inch dimension running lengthwise, cut to any multiple of 6 inches with both ends closed. Standard widths are 9-1/4", 10-1/4" and up, with wide sides closed and a bonded safety nosing in a contrasting color.
FRP covers add a new walking surface to suitable existing treads. Inspect the underlying stair for structural soundness before specifying a cover.

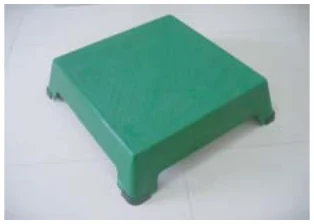

A bonded plate closes the top of molded or pultruded grating. Confirm load capacity, fastening and drainage requirements for the complete panel.
Hardware
Select hardware to suit the grating profile and support structure. Share a support detail so we can confirm the fastening arrangement.
M clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

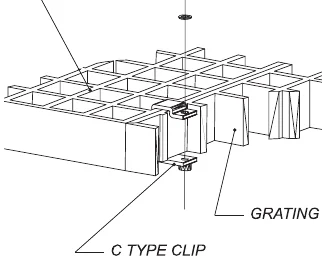

C clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

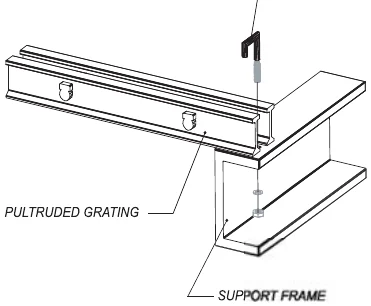

J clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

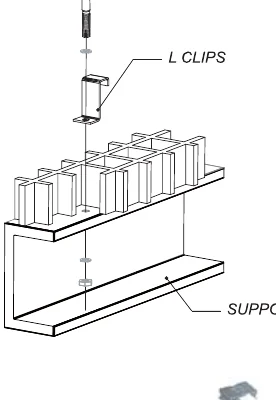

L clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

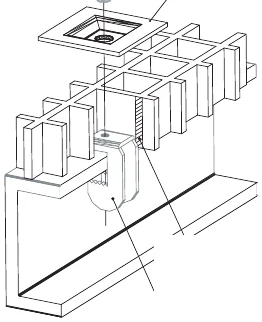

G clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

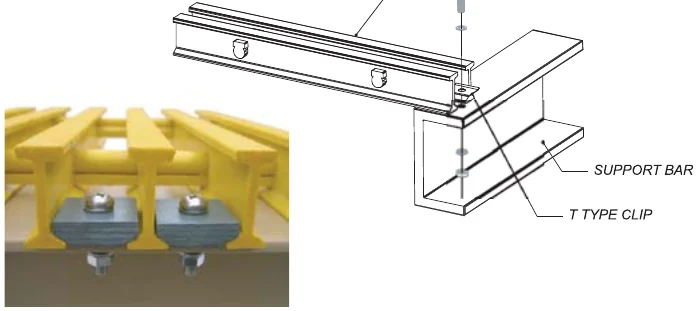

T clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

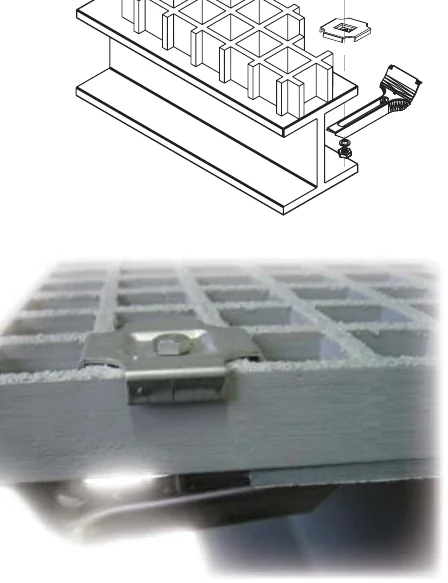

CY clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

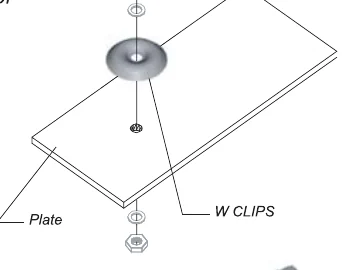

W clip shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.

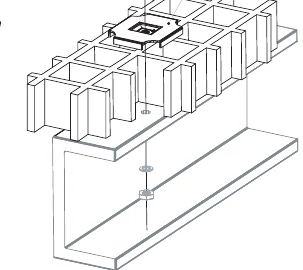

Pawl fastener shown in the catalog hardware range. Confirm fit, material and fastening quantity for the selected panel and support detail.
Technical data
Product dimensions, load tables and resin guidance for your specification review.
