Mini mesh (ADA)

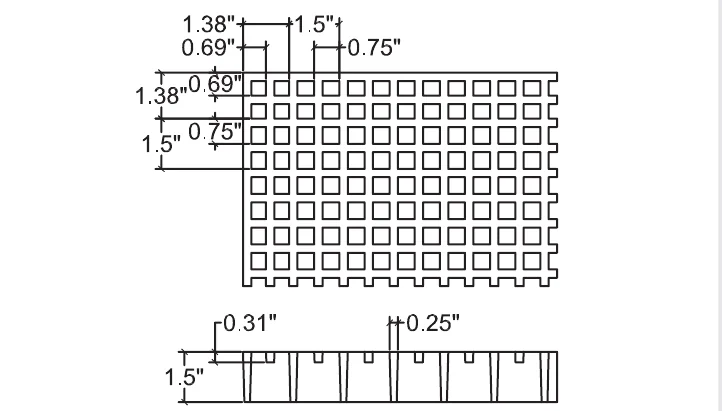

1 1/2" x 3/4" Mini Mesh
MM 1-1/2"x3/4"
Mini mesh provides a closer walking surface with 44% open area and a 1-1/2-inch depth. The catalog designates this configuration for ADA applications; final accessibility depends on the complete installation.
Panel Specifications
- Panel size
- 4' x 12'
- Approx. weight
- 4.75 lbs/sf
- Open area
- 44%
- Load bar width
- 1/4"
- Bar centers
- 3/4"
- Bars per foot of width
- 8
- Engineering properties per foot of width
- A=3.29in2I=0.74in4S=0.90in3
Typical uses
- Public walkways under accessibility review
- Observation decks
Material & Surface Options
- Resin systems
- Type V Vinyl ester (230°F) · Type I Isophthalic polyester (220°F) · Type O Orthophthalic polyester (160°F)
- Choose a Walking Surface
- Concave (as-molded) · Grit top · Covered / plated
- Standard colors
- Dark grey, Light grey, Green, Yellow, Orange
- Flame spread (ASTM E84)
- Class 1, 25 or less
Load & deflection data
Load & Deflection Data
Published deflection values in inches at the listed spans and loads. Review each table's notes and support conditions with your project engineer.
Concentrated load at mid-span (lbs)
| Span | 100 | 200 | 500 | 750 | 1000 | 1500 | 2000 |
|---|---|---|---|---|---|---|---|
| 18" | 0.003 | 0.006 | 0.016 | 0.024 | 0.032 | 0.048 | 0.064 |
| 24" | 0.007 | 0.014 | 0.036 | 0.054 | 0.072 | 0.108 | 0.144 |
| 30" | 0.012 | 0.024 | 0.059 | 0.089 | 0.118 | 0.177 | 0.236 |
| 36" | 0.017 | 0.034 | 0.086 | 0.129 | 0.172 | 0.258 | 0.344 |
| 42" | 0.027 | 0.053 | 0.133 | 0.200 | 0.266 | 0.399 | 0.532 |
| 48" | 0.033 | 0.066 | 0.166 | 0.249 | 0.332 | 0.498 | 0.664 |
Uniform load (lbs/sq ft)
| Span | 50 | 100 | 150 | 200 | 250 | 500 | 1000 | 2000 | Max rec. load (lbs/sq ft) | Apparent EI ×10⁶ (lb-in²) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12" | <0.001 | 0.002 | 0.003 | 0.004 | 0.005 | 0.010 | 0.020 | 0.039 | 6180 | 1.14 |
| 18" | 0.004 | 0.008 | 0.012 | 0.016 | 0.020 | 0.040 | 0.080 | 0.159 | 2747 | 1.43 |
| 24" | 0.011 | 0.022 | 0.033 | 0.044 | 0.055 | 0.110 | 0.220 | 0.440 | 1545 | 1.64 |
| 30" | 0.025 | 0.050 | 0.075 | 0.100 | 0.125 | 0.251 | 0.502 | — | 989 | 1.75 |
| 36" | 0.050 | 0.100 | 0.149 | 0.199 | 0.249 | 0.498 | — | — | 687 | 1.83 |
| 42" | 0.090 | 0.181 | 0.271 | 0.362 | 0.452 | — | — | — | 505 | 1.87 |
| 48" | 0.151 | 0.302 | 0.454 | 0.605 | — | — | — | — | 386 | 1.90 |
| 54" | 0.239 | 0.477 | — | — | — | — | — | — | 305 | 1.93 |
| 60" | 0.362 | — | — | — | — | — | — | — | 247 | 1.94 |
Line load (lbs/ft of width)
| Span | 50 | 100 | 150 | 200 | 250 | 500 | 1000 | 2000 | Max rec. load (lbs/ft of width) | Apparent EI ×10⁶ (lb-in²) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12" | 0.002 | 0.003 | 0.005 | 0.006 | 0.008 | 0.016 | 0.032 | 0.063 | 3090 | 1.14 |
| 18" | 0.004 | 0.009 | 0.013 | 0.017 | 0.021 | 0.043 | 0.085 | 0.170 | 2060 | 1.43 |
| 24" | 0.009 | 0.018 | 0.026 | 0.035 | 0.044 | 0.088 | 0.176 | 0.352 | 1545 | 1.64 |
| 30" | 0.016 | 0.032 | 0.048 | 0.064 | 0.080 | 0.160 | 0.321 | 0.642 | 1236 | 1.75 |
| 36" | 0.027 | 0.053 | 0.080 | 0.106 | 0.133 | 0.266 | 0.532 | — | 1030 | 1.83 |
| 42" | 0.041 | 0.083 | 0.124 | 0.165 | 0.207 | 0.413 | — | — | 883 | 1.87 |
| 48" | 0.060 | 0.121 | 0.181 | 0.242 | 0.302 | 0.605 | — | — | 773 | 1.90 |
| 54" | 0.085 | 0.170 | 0.255 | 0.339 | 0.424 | — | — | — | 687 | 1.93 |
| 60" | 0.116 | 0.232 | 0.347 | 0.463 | 0.579 | — | — | — | 618 | 1.94 |
Request a quote
Request Pricing for This Configuration
Provide the quantity, resin requirements and delivery ZIP code. Include the clear span and design load so the configuration can be reviewed.
