Pultruded I-bar
I-Bar PI-1240
PI-1240

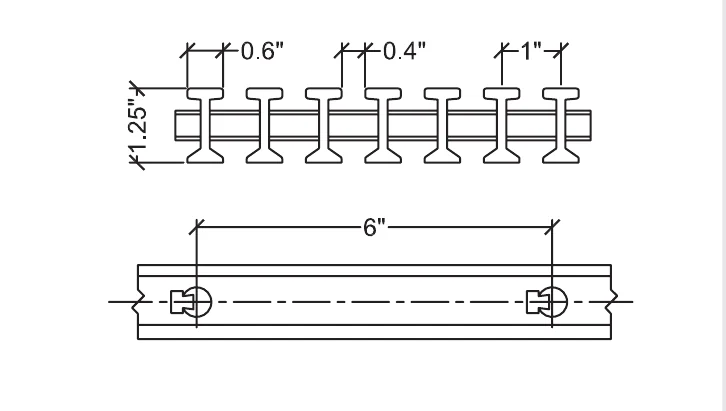

PI-1240 uses a 1-1/4-inch I-bar profile with 40% open area. It provides another depth option when matching grating to existing support elevations.
Panel Specifications
- Panel size
- 5' x 20'
- Approx. weight
- 3.77 lbs/sf
- Open area
- 40%
- Load bar depth
- 1 1/4"
- Bar centers
- 1"
- Bars per foot of width
- 12
- Engineering properties per foot of width
- A=4.13in2I=0.83in4S=1.33in3
Typical uses
- Existing-frame replacements
- Industrial access panels
Material & Surface Options
- Resin systems
- Type V Vinyl ester (230°F) · Type I Isophthalic polyester (220°F) · Type O Orthophthalic polyester (160°F)
- Choose a Walking Surface
- Concave (as-molded) · Grit top · Covered / plated
- Standard colors
- Dark grey, Light grey, Green, Yellow, Orange
- Flame spread (ASTM E84)
- Class 1, 25 or less
Load & deflection data
Load & Deflection Data
Published load tables do not include this configuration. Send us the span and load and we will confirm it against the factory data.
Pultruded I-bar
Others in this family
| Configuration | Load bar depth | Bar centers | Weight | Open |
|---|---|---|---|---|
| I-Bar PI-1040PI-1040 | 1" | 1" | 3.47 lbs/sf | 40% |
| I-Bar PI-1050PI-1050 | 1" | 1.2" | 2.97 lbs/sf | 50% |
| I-Bar PI-1060PI-1060 | 1" | 1 1/2" | 2.47 lbs/sf | 60% |
| I-Bar PI-1540PI-1540 | 1 1/2" | 1" | 4.22 lbs/sf | 40% |
| I-Bar PI-1550PI-1550 | 1 1/2" | 1.2" | 3.60 lbs/sf | 50% |
| I-Bar PI-1560PI-1560 | 1 1/2" | 1 1/2" | 2.97 lbs/sf | 60% |
| I-Bar PI-1250PI-1250 | 1 1/4" | 1.2" | 3.22 lbs/sf | 50% |
| I-Bar PI-1260PI-1260 | 1 1/4" | 1 1/2" | 2.67 lbs/sf | 60% |
| I-Bar PI-3050PI-3050 | 3" | 1.2" | 10.34 lbs/sf | 50% |
| I-Bar PI-3060PI-3060 | 3" | 1 1/2" | 8.40 lbs/sf | 60% |
Request a quote
Request Pricing for This Configuration
Provide the quantity, resin requirements and delivery ZIP code. Include the clear span and design load so the configuration can be reviewed.
