Pultruded I-bar

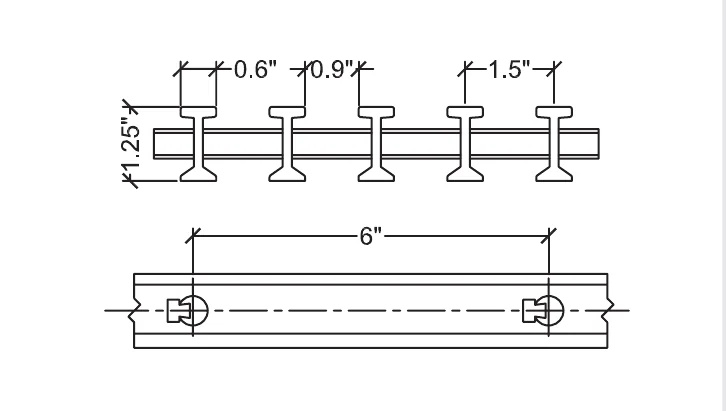

I-Bar PI-1260
PI-1260
PI-1260 has 60% open area in the 1-1/4-inch range. Its 2.67 lbs/sf catalog weight supports panel handling and dead-load calculations.
Panel Specifications
- Panel size
- 5' x 20'
- Approx. weight
- 2.67 lbs/sf
- Open area
- 60%
- Load bar depth
- 1 1/4"
- Bar centers
- 1 1/2"
- Bars per foot of width
- 8
- Engineering properties per foot of width
- A=2.75in2I=0.55in4S=0.88in3
Typical uses
- Ventilated decks
- Weight-reviewed access panels
Material & Surface Options
- Resin systems
- Type V Vinyl ester (230°F) · Type I Isophthalic polyester (220°F) · Type O Orthophthalic polyester (160°F)
- Choose a Walking Surface
- Concave (as-molded) · Grit top · Covered / plated
- Standard colors
- Dark grey, Light grey, Green, Yellow, Orange
- Flame spread (ASTM E84)
- Class 1, 25 or less
Load & deflection data
Load & Deflection Data
Published load tables do not include this configuration. Send us the span and load and we will confirm it against the factory data.
