Pultruded I-bar
I-Bar PI-1060
PI-1060

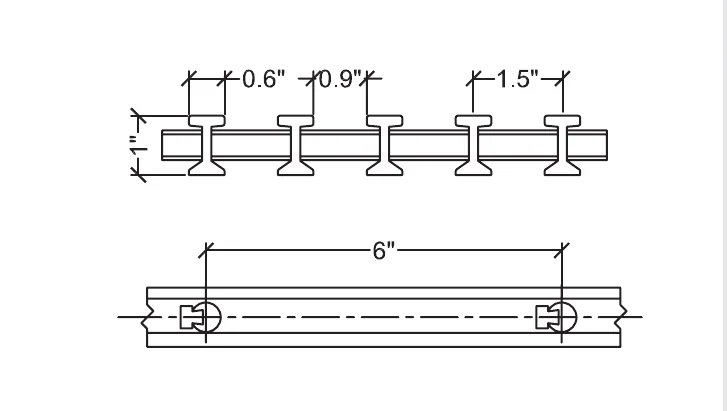

PI-1060 offers 60% open area in the 1-inch I-bar range at 2.47 lbs/sf. Consider it where open area is important and the support spacing suits the load table.
Panel Specifications
- Panel size
- 5' x 20'
- Approx. weight
- 2.47 lbs/sf
- Open area
- 60%
- Load bar depth
- 1"
- Bar centers
- 1 1/2"
- Bars per foot of width
- 8
- Engineering properties per foot of width
- A=2.44in2I=0.31in4S=0.62in3
Typical uses
- Open access decks
- Ventilated platform infill
Material & Surface Options
- Resin systems
- Type V Vinyl ester (230°F) · Type I Isophthalic polyester (220°F) · Type O Orthophthalic polyester (160°F)
- Choose a Walking Surface
- Concave (as-molded) · Grit top · Covered / plated
- Standard colors
- Dark grey, Light grey, Green, Yellow, Orange
- Flame spread (ASTM E84)
- Class 1, 25 or less
Load & deflection data
Load & Deflection Data
Published deflection values in inches at the listed spans and loads. Review each table's notes and support conditions with your project engineer.
Uniform load (lbs/sq ft)
| Span | 50 | 100 | 150 | 200 | 250 | 500 | 1000 | 2000 | Max rec. load (lbs/sq ft) | Apparent EI ×10⁶ (lb-in²) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12" | 0.001 | 0.002 | 0.003 | 0.004 | 0.005 | 0.010 | 0.020 | 0.041 | 7944 | 1.10 |
| 18" | 0.004 | 0.008 | 0.012 | 0.017 | 0.021 | 0.041 | 0.083 | 0.165 | 5296 | 1.38 |
| 24" | 0.012 | 0.023 | 0.035 | 0.047 | 0.058 | 0.117 | 0.234 | 0.468 | 2935 | 1.54 |
| 30" | 0.027 | 0.054 | 0.081 | 0.108 | 0.135 | 0.270 | 0.539 | — | 1845 | 1.63 |
| 36" | 0.055 | 0.110 | 0.165 | 0.220 | 0.274 | 0.549 | — | — | 1281 | 1.66 |
| 42" | 0.100 | 0.201 | 0.301 | 0.402 | 0.502 | — | — | — | 943 | 1.68 |
| 48" | 0.169 | 0.339 | 0.508 | 0.678 | — | — | — | — | 721 | 1.70 |
| 54" | 0.268 | 0.536 | — | — | — | — | — | — | 571 | 1.72 |
| 60" | 0.404 | — | — | — | — | — | — | — | 514 | 1.74 |
Line load (lbs/ft of width)
| Span | 50 | 100 | 150 | 200 | 250 | 500 | 1000 | 2000 | Max rec. load (lbs/ft of width) | Apparent EI ×10⁶ (lb-in²) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12" | 0.002 | 0.003 | 0.005 | 0.007 | 0.008 | 0.016 | 0.033 | 0.065 | 5755 | 1.10 |
| 18" | 0.004 | 0.009 | 0.013 | 0.018 | 0.022 | 0.044 | 0.088 | 0.176 | 3850 | 1.38 |
| 24" | 0.009 | 0.019 | 0.028 | 0.037 | 0.047 | 0.094 | 0.187 | 0.374 | 2888 | 1.54 |
| 30" | 0.017 | 0.035 | 0.052 | 0.069 | 0.086 | 0.173 | 0.345 | 0.690 | 2310 | 1.63 |
| 36" | 0.029 | 0.059 | 0.088 | 0.117 | 0.146 | 0.293 | 0.586 | — | 1925 | 1.66 |
| 42" | 0.046 | 0.092 | 0.138 | 0.184 | 0.230 | 0.459 | — | — | 1650 | 1.68 |
| 48" | 0.068 | 0.136 | 0.203 | 0.271 | 0.339 | 0.678 | — | — | 1444 | 1.70 |
| 54" | 0.095 | 0.191 | 0.286 | 0.381 | 0.477 | — | — | — | 1283 | 1.72 |
| 60" | 0.129 | 0.259 | 0.388 | 0.517 | 0.647 | — | — | — | 1155 | 1.74 |
| 66" | 0.171 | 0.342 | 0.513 | 0.685 | — | — | — | — | 1050 | 1.75 |
| 72" | 0.221 | 0.442 | 0.663 | — | — | — | — | — | 962 | 1.76 |
Pultruded I-bar
Others in this family
| Configuration | Load bar depth | Bar centers | Weight | Open |
|---|---|---|---|---|
| I-Bar PI-1040PI-1040 | 1" | 1" | 3.47 lbs/sf | 40% |
| I-Bar PI-1050PI-1050 | 1" | 1.2" | 2.97 lbs/sf | 50% |
| I-Bar PI-1540PI-1540 | 1 1/2" | 1" | 4.22 lbs/sf | 40% |
| I-Bar PI-1550PI-1550 | 1 1/2" | 1.2" | 3.60 lbs/sf | 50% |
| I-Bar PI-1560PI-1560 | 1 1/2" | 1 1/2" | 2.97 lbs/sf | 60% |
| I-Bar PI-1240PI-1240 | 1 1/4" | 1" | 3.77 lbs/sf | 40% |
| I-Bar PI-1250PI-1250 | 1 1/4" | 1.2" | 3.22 lbs/sf | 50% |
| I-Bar PI-1260PI-1260 | 1 1/4" | 1 1/2" | 2.67 lbs/sf | 60% |
| I-Bar PI-3050PI-3050 | 3" | 1.2" | 10.34 lbs/sf | 50% |
| I-Bar PI-3060PI-3060 | 3" | 1 1/2" | 8.40 lbs/sf | 60% |
Request a quote
Request Pricing for This Configuration
Provide the quantity, resin requirements and delivery ZIP code. Include the clear span and design load so the configuration can be reviewed.
