Pultruded I-bar

I-Bar PI-3060

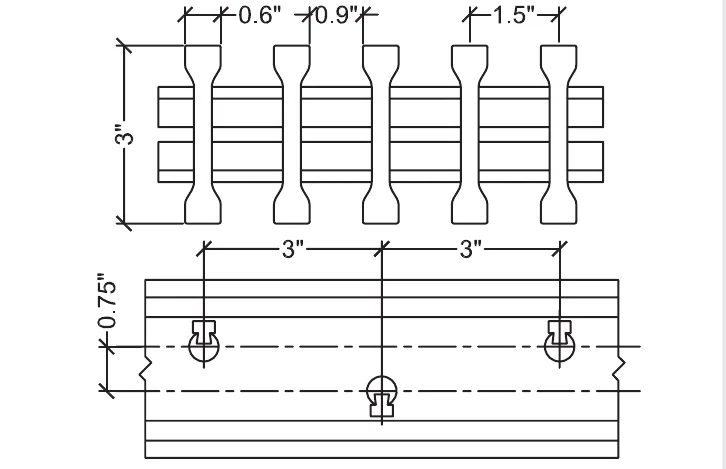

PI-3060

PI-3060 offers 60% open area in the 3-inch I-bar range at 8.40 lbs/sf. Check the load table, bearing direction and support details when comparing deeper profiles.

Panel size: 5' x 20'
Approx. weight: 8.40 lbs/sf
Open area: 60%
Load bar depth: 3"
Bar centers: 1 1/2"
Bars per foot of width: 8
Engineering properties per foot of width: A=9.63in²I=9.18in⁴S=6.12in³

Product

Typical uses

Open industrial decks
Deeper access-platform sections

Material & Surface Options

Resin systems: Type V Vinyl ester (230°F) · Type I Isophthalic polyester (220°F) · Type O Orthophthalic polyester (160°F)
Choose a Walking Surface: Concave (as-molded) · Grit top · Covered / plated
Standard colors: Dark grey, Light grey, Green, Yellow, Orange
Flame spread (ASTM E84): Class 1, 25 or less

Load & deflection data

Load & Deflection Data

Published deflection values in inches at the listed spans and loads. Review each table's notes and support conditions with your project engineer.

Uniform load (lbs/sq ft)

Deflection in inches
Span	50	100	150	200	250	500	1000	2000	Max rec. load (lbs/sq ft)	Apparent EI ×10⁶ (lb-in²)
12"	<0.001	<0.001	<0.001	<0.001	<0.001	0.002	0.003	0.007	44333	6.85
18"	<0.001	0.001	0.001	0.002	0.002	0.005	0.010	0.020	19703	11.68
24"	0.001	0.002	0.003	0.004	0.005	0.011	0.022	0.043	11083	16.68
30"	0.002	0.004	0.006	0.008	0.011	0.021	0.042	0.085	7093	20.78
36"	0.004	0.007	0.011	0.014	0.018	0.036	0.072	0.144	4926	25.24
42"	0.006	0.011	0.017	0.023	0.029	0.057	0.115	0.230	3619	29.42
48"	0.009	0.018	0.026	0.035	0.044	0.088	0.176	0.352	2771	32.7
54"	0.013	0.026	0.040	0.053	0.066	0.132	0.264	0.527	2189	35
60"	0.019	0.039	0.058	0.077	0.097	0.194	0.387	—	1773	36.3
66"	0.028	0.055	0.083	0.110	0.138	0.275	0.551	—	1466	37.40
72"	0.038	0.076	0.114	0.152	0.190	0.381	—	—	1231	38.30

Line load (lbs/ft of width)

Deflection in inches
Span	50	100	150	200	250	500	1000	2000	Max rec. load (lbs/ft of width)	Apparent EI ×10⁶ (lb-in²)
12"	<0.001	<0.001	<0.001	0.001	0.001	0.003	0.005	0.011	34635	6.85
18"	<0.001	0.001	0.002	0.002	0.003	0.005	0.010	0.021	23090	11.68
24"	<0.001	0.002	0.003	0.003	0.004	0.009	0.017	0.035	17318	16.68
30"	0.001	0.003	0.004	0.005	0.007	0.014	0.027	0.054	13854	20.78
36"	0.002	0.004	0.006	0.008	0.010	0.019	0.039	0.077	11545	25.24
42"	0.003	0.005	0.008	0.010	0.013	0.026	0.052	0.105	9896	29.42
48"	0.004	0.007	0.011	0.014	0.018	0.035	0.070	0.141	8659	32.70
54"	0.005	0.009	0.014	0.019	0.023	0.047	0.094	0.187	7697	35.00
60"	0.006	0.012	0.019	0.025	0.031	0.062	0.124	0.248	6927	36.30
66"	0.008	0.016	0.024	0.032	0.040	0.080	0.160	0.320	6297	37.40
72"	0.010	0.020	0.030	0.041	0.051	0.102	0.203	0.406	5773	38.30

See the complete load tables

Pultruded I-bar

Others in this family

Configuration	Load bar depth	Bar centers	Weight	Open
I-Bar PI-1040PI-1040	1"	1"	3.47 lbs/sf	40%
I-Bar PI-1050PI-1050	1"	1.2"	2.97 lbs/sf	50%
I-Bar PI-1060PI-1060	1"	1 1/2"	2.47 lbs/sf	60%
I-Bar PI-1540PI-1540	1 1/2"	1"	4.22 lbs/sf	40%
I-Bar PI-1550PI-1550	1 1/2"	1.2"	3.60 lbs/sf	50%
I-Bar PI-1560PI-1560	1 1/2"	1 1/2"	2.97 lbs/sf	60%
I-Bar PI-1240PI-1240	1 1/4"	1"	3.77 lbs/sf	40%
I-Bar PI-1250PI-1250	1 1/4"	1.2"	3.22 lbs/sf	50%
I-Bar PI-1260PI-1260	1 1/4"	1 1/2"	2.67 lbs/sf	60%
I-Bar PI-3050PI-3050	3"	1.2"	10.34 lbs/sf	50%

Request a quote

Request Pricing for This Configuration

Provide the quantity, resin requirements and delivery ZIP code. Include the clear span and design load so the configuration can be reviewed.
