Pultruded T-bar

T-Bar PT-2033

PT-2033

PT-2033 uses 2-inch T-bars with a broad top flange and 33% open area. Compare it for pedestrian decks where walking-surface coverage is a selection priority.

Panel size: 5' x 20'
Approx. weight: 4.44 lbs/sf
Open area: 33%

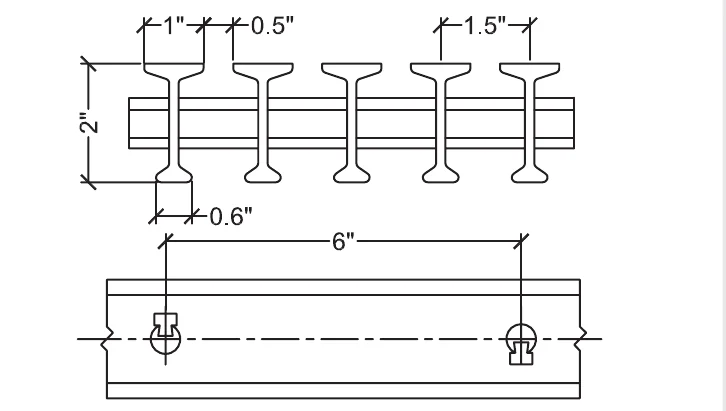

Load bar depth: 2"
Bar centers: 1 1/2"
Bars per foot of width: 8
Engineering properties per foot of width: A=4.34in²I=2.11in⁴S_T=2.64in³S_B=1.76in³

Product

Typical uses

Pedestrian decks
Access bridges

Material & Surface Options

Resin systems: Type V Vinyl ester (230°F) · Type I Isophthalic polyester (220°F) · Type O Orthophthalic polyester (160°F)
Choose a Walking Surface: Concave (as-molded) · Grit top · Covered / plated
Standard colors: Dark grey, Light grey, Green, Yellow, Orange
Flame spread (ASTM E84): Class 1, 25 or less

Load & deflection data

Load & Deflection Data

Published deflection values in inches at the listed spans and loads. Review each table's notes and support conditions with your project engineer.

Uniform load (lbs/sq ft)

Deflection in inches
Span	50	100	150	200	250	500	1000	2000	Max rec. load (lbs/sq ft)	Apparent EI ×10⁶ (lb-in²)
12"	<0.001	0.001	0.001	0.001	0.002	0.003	0.006	0.012	20269	3.60
18"	0.001	0.002	0.003	0.004	0.005	0.009	0.019	0.038	13524	6.07
24"	0.002	0.005	0.007	0.009	0.011	0.023	0.046	0.091	7398	7.89
30"	0.005	0.009	0.014	0.019	0.024	0.047	0.094	0.189	5437	9.32
36"	0.009	0.018	0.027	0.036	0.045	0.090	0.180	0.361	3612	10.10
42"	0.016	0.032	0.048	0.064	0.080	0.159	0.319	0.637	2635	10.60
48"	0.026	0.052	0.078	0.104	0.130	0.260	0.521	—	2030	11.06
54"	0.041	0.082	0.123	0.164	0.205	0.410	—	—	1600	11.26
60"	0.062	0.124	0.186	0.248	0.309	0.619	—	—	1295	11.36
66"	0.090	0.180	0.269	0.359	0.449	—	—	—	1070	11.46
72"	0.127	0.254	0.380	0.507	0.634	—	—	—	899	11.50

Line load (lbs/ft of width)

Deflection in inches
Span	50	100	150	200	250	500	1000	2000	Max rec. load (lbs/ft of width)	Apparent EI ×10⁶ (lb-in²)
12"	0.001	0.001	0.002	0.002	0.003	0.005	0.010	0.020	16215	3.60
18"	0.001	0.002	0.003	0.004	0.005	0.010	0.020	0.040	10810	6.07
24"	0.002	0.004	0.005	0.007	0.009	0.018	0.037	0.073	8108	7.89
30"	0.003	0.006	0.009	0.012	0.015	0.030	0.060	0.121	6486	9.32
36"	0.005	0.010	0.014	0.019	0.024	0.048	0.096	0.192	5405	10.10
42"	0.007	0.015	0.022	0.029	0.036	0.073	0.146	0.291	4633	10.60
48"	0.010	0.021	0.031	0.042	0.052	0.104	0.208	0.417	4054	11.06
54"	0.015	0.029	0.044	0.058	0.073	0.146	0.291	0.583	3603	11.26
60"	0.020	0.040	0.059	0.079	0.099	0.198	0.396	—	3243	11.36
66"	0.026	0.052	0.078	0.105	0.131	0.261	0.523	—	2948	11.46
72"	0.034	0.068	0.101	0.135	0.169	0.338	0.676	—	2703	11.50

See the complete load tables

Pultruded T-bar

Others in this family

Configuration	Load bar depth	Bar centers	Weight	Open
T-Bar PT-2050PT-2050	2"	2"	3.43 lbs/sf	50%

Request a quote

Request Pricing for This Configuration

Provide the quantity, resin requirements and delivery ZIP code. Include the clear span and design load so the configuration can be reviewed.
