Pultruded I-bar (ADA)
I-Bar PI-1060-ADA
PI-1060-ADA
PI-1060-ADA offers 60% open area in a catalog ADA-designated profile. Check load data and the complete walking-surface requirements for the proposed installation.

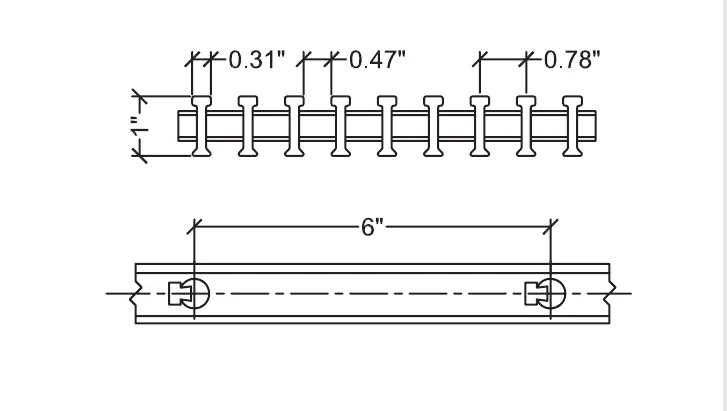

Panel Specifications
- Panel size
- 5' x 20'
- Approx. weight
- 2.92 lbs/sf
- Open area
- 60%
- Load bar depth
- 1"
- Bar centers
- 0.78"
- Bars per foot of width
- 15
- Engineering properties per foot of width
- A=2.90in2I=0.32in4S=0.64in3
Typical uses
- Open public-access decks
- Accessible walkway designs
Material & Surface Options
- Resin systems
- Type V Vinyl ester (230°F) · Type I Isophthalic polyester (220°F) · Type O Orthophthalic polyester (160°F)
- Choose a Walking Surface
- Concave (as-molded) · Grit top · Covered / plated
- Standard colors
- Dark grey, Light grey, Green, Yellow, Orange
- Flame spread (ASTM E84)
- Class 1, 25 or less
Load & deflection data
Load & Deflection Data
Published deflection values in inches at the listed spans and loads. Review each table's notes and support conditions with your project engineer.
Uniform load (lbs/sq ft)
| Span | 50 | 100 | 150 | 200 | 250 | 500 | 1000 | 2000 | Max rec. load (lbs/sq ft) | Apparent EI ×10⁶ (lb-in²) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12" | 0.001 | 0.002 | 0.003 | 0.004 | 0.005 | 0.009 | 0.019 | 0.038 | 7912 | 1.20 |
| 18" | 0.004 | 0.008 | 0.012 | 0.015 | 0.019 | 0.038 | 0.077 | 0.154 | 3516 | 1.48 |
| 24" | 0.011 | 0.022 | 0.033 | 0.044 | 0.055 | 0.109 | 0.218 | 0.436 | 1978 | 1.65 |
| 30" | 0.026 | 0.051 | 0.077 | 0.102 | 0.128 | 0.255 | — | — | 1266 | 1.72 |
| 36" | 0.052 | 0.104 | 0.155 | 0.207 | 0.259 | — | — | — | 879 | 1.76 |
| 42" | 0.094 | 0.188 | 0.281 | 0.375 | — | — | — | — | 646 | 1.80 |
| 48" | 0.158 | 0.316 | 0.475 | 0.633 | — | — | — | — | 494 | 1.82 |
| 54" | 0.251 | 0.501 | — | — | — | — | — | — | 391 | 1.84 |
| 60" | 0.378 | — | — | — | — | — | — | — | 316 | 1.86 |
| 66" | 0.551 | — | — | — | — | — | — | — | 261 | 1.87 |
| 72" | 0.776 | — | — | — | — | — | — | — | 220 | 1.88 |
Line load (lbs/ft of width)
| Span | 50 | 100 | 150 | 200 | 250 | 500 | 1000 | 2000 | Max rec. load (lbs/ft of width) | Apparent EI ×10⁶ (lb-in²) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12" | 0.002 | 0.003 | 0.005 | 0.006 | 0.008 | 0.015 | 0.030 | 0.060 | 6181 | 1.20 |
| 18" | 0.004 | 0.008 | 0.012 | 0.016 | 0.021 | 0.041 | 0.082 | 0.164 | 4121 | 1.48 |
| 24" | 0.009 | 0.017 | 0.026 | 0.035 | 0.044 | 0.087 | 0.175 | 0.349 | 3091 | 1.65 |
| 30" | 0.016 | 0.033 | 0.049 | 0.065 | 0.082 | 0.164 | 0.327 | — | 2472 | 1.72 |
| 36" | 0.028 | 0.055 | 0.083 | 0.110 | 0.138 | 0.276 | — | — | 2060 | 1.76 |
| 42" | 0.043 | 0.086 | 0.129 | 0.172 | 0.214 | 0.429 | — | — | 1766 | 1.80 |
| 48" | 0.063 | 0.127 | 0.190 | 0.253 | 0.316 | — | — | — | 1545 | 1.82 |
| 54" | 0.089 | 0.178 | 0.267 | 0.357 | 0.446 | — | — | — | 1374 | 1.84 |
| 60" | 0.121 | 0.242 | 0.363 | 0.484 | 0.605 | — | — | — | 1237 | 1.86 |
| 66" | 0.160 | 0.320 | 0.480 | 0.641 | — | — | — | — | 1124 | 1.87 |
| 72" | 0.207 | 0.414 | 0.620 | — | — | — | — | — | 1030 | 1.88 |
Pultruded I-bar (ADA)
Others in this family
| Configuration | Load bar depth | Bar centers | Weight | Open |
|---|---|---|---|---|
| I-Bar PI-1040-ADAPI-1040-ADA | 1" | 0.52" | 4.08 lbs/sf | 40% |
| I-Bar PI-1050-ADAPI-1050-ADA | 1" | 0.63" | 3.50 lbs/sf | 50% |
| I-Bar PI-3040-ADAPI-3040-ADA | 3" | 1" | 12.28 lbs/sf | 40% |
